TDD 3.5G 25W power amplifier
Size: 150 * 125mm, powered by 28V
Divided by frequency band: B34, B38, B39, B40, B41, N41, N78, N79, etc Divided by power: 200mW, 500mW, 1W, 2W, 5W, 10W, 16W, 20W, 25W, 50W, 80W
Classified by purpose: for small stations, positioning, electronic fences, and commercial use by China Mobile and China Unicom telecommunications operators
Introduction:
TDD power amplifier series:
Divided by frequency band: B34 B38, B39, B40, B41, N41, N78, N79, etc.
Divided by power: 200mW, 500mW, 1W, 2W, 5W, 10W, 16W, 20W, 25W, 50W, 80W
Classified by purpose: for small stations, positioning, electronic fences, and commercial use by China Mobile and China Unicom telecommunications operators.
Product Description:
The power amplifier module is the core component of the entire equipment, which is the main component for amplifying RF signals. The performance and stability of power amplifiers directly affect the overall performance and stability of the machine. The amplifiers produced by our company can completely alleviate your concerns!
Product features:
High reliability, high stability, and high consistency.
Small size and low power consumption
Equipped with power, standing wave, temperature and fault detection, and with active fault reporting function
Equipped with ATT and ALC control functions
Monitoring function: RS485 protocol, providing module testing software.
The product series is complete, with a complete power level to meet different usage requirements
Divided by frequency band: B34 B38, B39, B40, B41, N41, N78, N79, etc.
Divided by power: 200mW, 500mW, 1W, 2W, 5W, 10W, 16W, 20W, 25W, 50W, 80W
Classified by purpose: for small stations, positioning, electronic fences, and commercial use by China Mobile and China Unicom telecommunications operators.
Product Description:
The power amplifier module is the core component of the entire equipment, which is the main component for amplifying RF signals. The performance and stability of power amplifiers directly affect the overall performance and stability of the machine. The amplifiers produced by our company can completely alleviate your concerns!
Product features:
High reliability, high stability, and high consistency.
Small size and low power consumption
Equipped with power, standing wave, temperature and fault detection, and with active fault reporting function
Equipped with ATT and ALC control functions
Monitoring function: RS485 protocol, providing module testing software.
The product series is complete, with a complete power level to meet different usage requirements

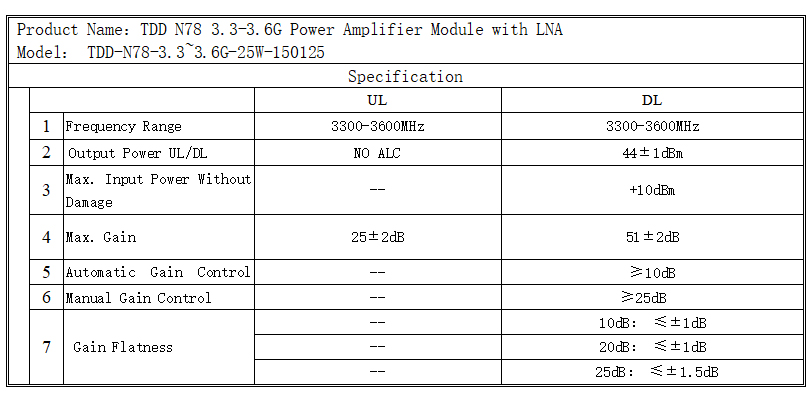

Parameters:
Specification：TDD N78 3.3-3.6G 25W Power Amplifier Module with LNA
size：150*125mm （Monitoring:RS485） Power Supply：28V
If you need detailed technical information, please contact us. Thank you.
size：150*125mm （Monitoring:RS485） Power Supply：28V
If you need detailed technical information, please contact us. Thank you.
